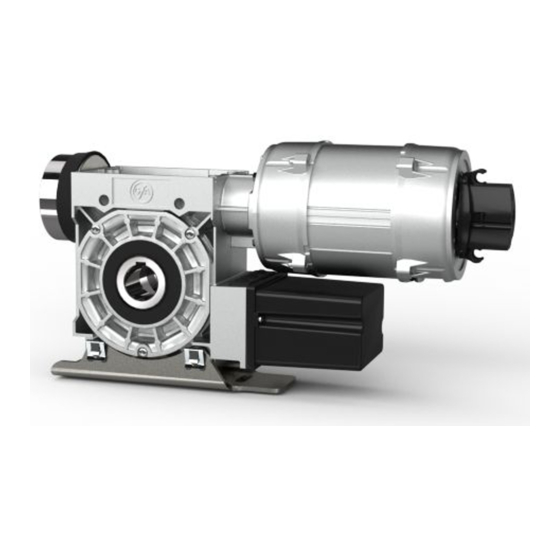

Manufacturer: GFA ELEKTROMATEN
Type: Chain Drive For Rolling Shutters & Grilles
Model: KE80.24
Part No.: 10002539
Technical Data:
Output Torque: 800 Nm
Output Speed: 24 rpm
Output Shaft/Hollow Shaft: 55 mm
Max. Holding Torque: 800 Nm
Max. Output Speed Open/Close for Frequency Inverter Operation: 42/42
Motor Power: 2.00 kW
Supply Voltage: 3-phase -400 V AC
Operating Frequency: 50 Hz
Operating Current: 4.7 A
Max. cycles/hour: 12(8.3)
Limit Switch Range: 20(60,110)
Max. Hand Force NHK/SK: 302/244 N
Weight: 49 Kg
