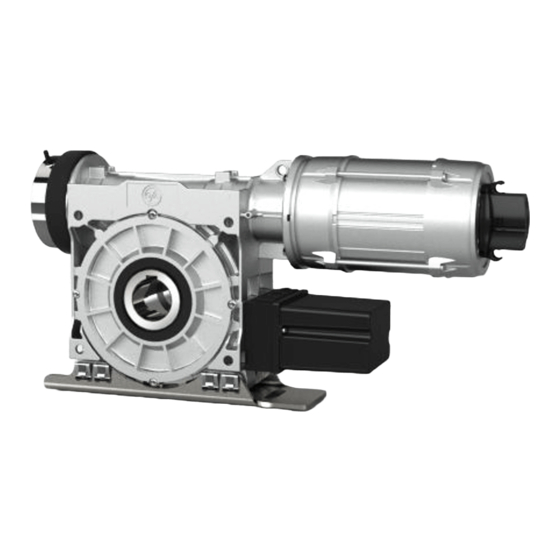

Manufacturer: GFA ELEKTROMATEN
Type: Drive For Rolling Shutters & Grilles
Model: SI75.10
Part No.: 10002402
Technical Data:
Output Torque: 750 Nm
Output Speed: 10 rpm
Output Shaft/Hollow Shaft: 55 mm
Locking Torque: 2800 N.m
Max. Holding Torque: 750 Nm
Max. Output Speed Open/Close for Frequency Inverter Operation: 18/18
Motor Power: 1.10 kW
Supply Voltage: 3-phase -400 V AC
Operating Frequency: 50 Hz
Operating Current: 7.0/4.1 A
Max. cycles/hour: 14
Limit Switch Range: 20(60,110)
Max. Hand Force NHK/SK: 290/234 N
Weight: 42 Kg
Download Product Catalog:
