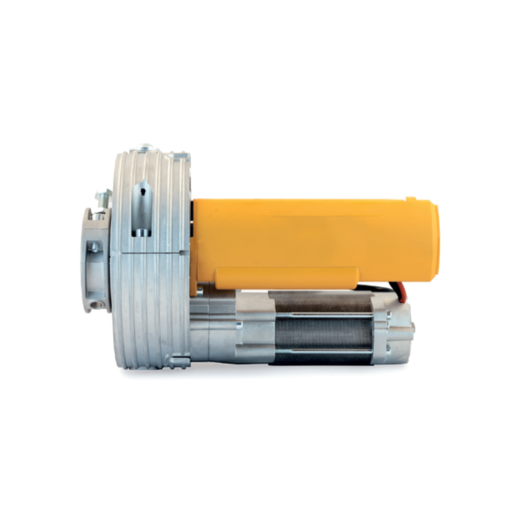

NORTON ROLL 60K 170 FR ROLL MOTOR

Manufacturer: GRUPPO NORTON
Type: Roll Motor
Model: ROLL 60K 170 FR

Technical Data:
Power Supply: Electric Motor:230 V AC @ 50 … 60 Hz
Electric Motor Speed: 1400 rpm
Current: 2.6 A
Motor Power: 600 W
Capacitor: 18 µf
Torque: 170 Nm
Lifting Power: 170 kg
Crown Speed: 9 rpm
Thermal Protection: 5 minutes
Operating Temperature: -20 … 80 °C
Motor Dimensions: 200x220x230 mm
Motor Crown Diameter: 200/220
Shutter Tube: 60/ 48/ 42
Motor Weight: 7.8 kg
